TCT Hole Saw

Body Material：High Carbon Steel with Heat Treatment
Process: Welded
Application: metal drilling
Tip Material：Tungsten Carbide
Product description: TCT Hole Saw Cutter For 5mm Stainless Steel Sheet Metal
INQUIRY

Product advantages：

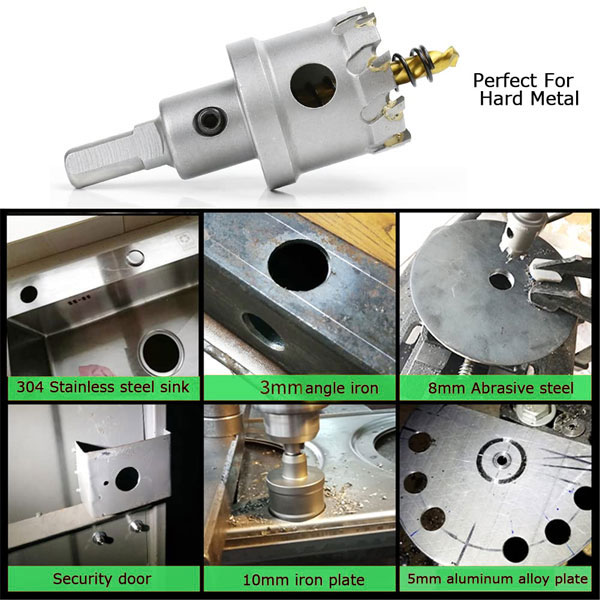

1. MULTIPLE APPLICATIONS:This set is apposite to cut a hole on 3mm stainless steel,5mm iron plate,5mm aluminum alloy,metal tube and other metal material.Widely application for your convenient.

2. HEAVY-DUTY MATERIAL:This hole saw kit is made of industrial grade TCT carbide steel,extreme longevity, and ultimate durability,with anti-corrosion and hard surface.

Suitable for round or square pipes, equipment cabinet.

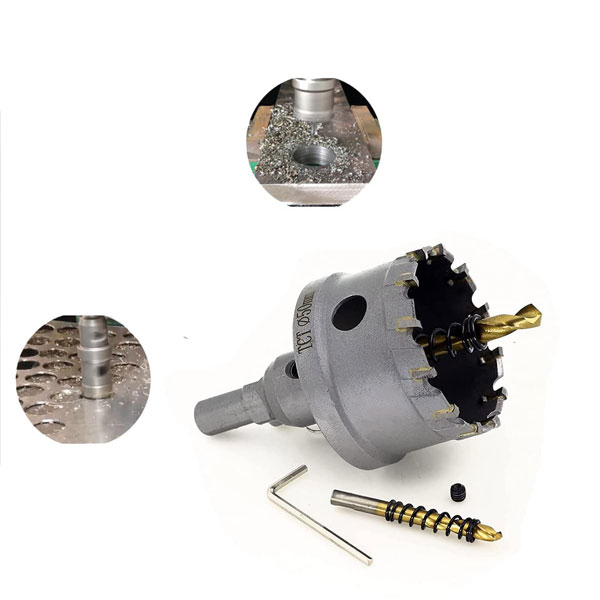

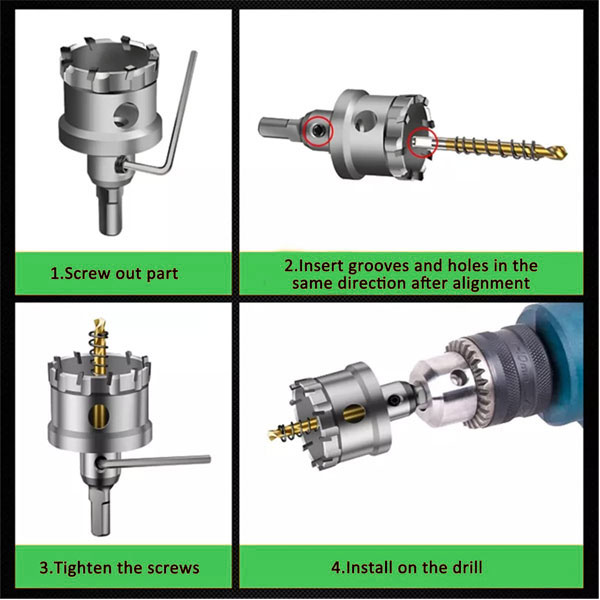

3. All In One: Drill bit, spring, wrench are included, no need to buy any extra accessories for the drilling works.

4. Suitable Machine: Can be used on hand held drill, bench drills, magnetic drills, pneumatic drills and other rotating machines.

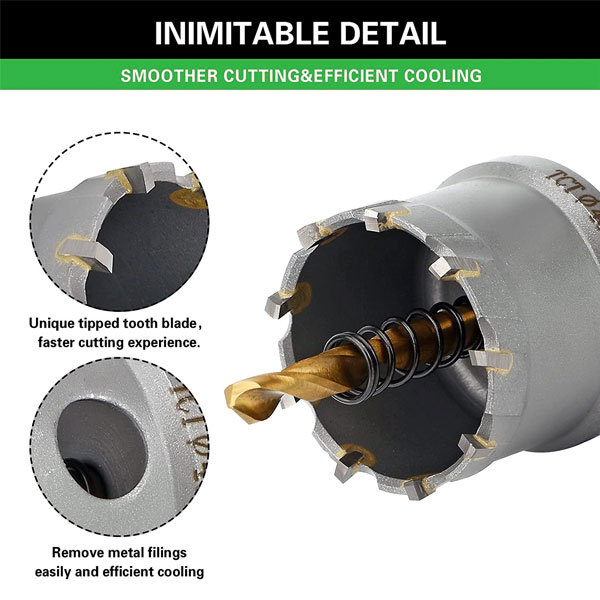

5. Three-edged combined tooth design, layered components cutting, low cutting resistance, fast drilling speed.

6. EFFICIENT COOLING:Designed with double round circles to remove metal filings easily and efficient cooling.You can use a lubricant ,so the bit will not overheat. It can be water or oil.

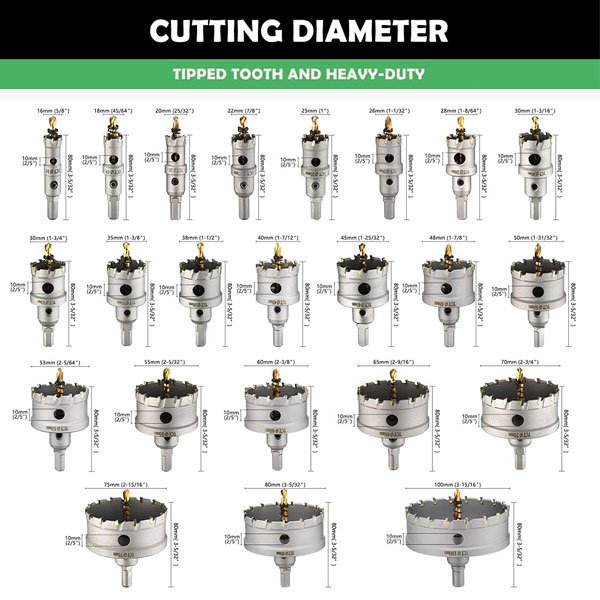

Diameter(mm)	Teeth NO	Depth/mm	Diameter(mm)	Teeth NO	Depth/mm
12	3	3.9-4.0	48	9	3.9-4.0
13	3	3.9-4.0	50	12	3.9-4.0
14	3	3.9-4.0	51	12	3.9-4.0
15	4	3.9-4.0	53	12	3.9-4.0
16	4	3.9-4.0	55	12	3.9-4.0
16.5	4	3.9-4.0	60	12	3.9-4.0
17	4	3.9-4.0	63	12	3.9-4.0
17.5	4	3.9-4.0	65	12	3.9-4.0
18	4	3.9-4.0	70	12	3.9-4.0
18.5	4	3.9-4.0	75	15	3.9-4.0
19	4	3.9-4.0	80	15	3.9-4.0
19.5	4	3.9-4.0	85	15	3.9-4.0
20	5	3.9-4.0	90	15	3.9-4.0
20.5	5	3.9-4.0	95	18	3.9-4.0
21	5	3.9-4.0	100	18	3.9-4.0
22	6	3.9-4.0	105	18	3.9-4.0
22.5	6	3.9-4.0	110	18	3.9-4.0
23	6	3.9-4.0	115	18	3.9-4.0
24	6	3.9-4.0	120	21	3.9-4.0
25	6	3.9-4.0	125	21	3.9-4.0
25.5	6	3.9-4.0	130	24	3.9-4.0
26	6	3.9-4.0	135	24	3.9-4.0
27	6	3.9-4.0	140	24	3.9-4.0
28	6	3.9-4.0	145	24	3.9-4.0
29	6	3.9-4.0	150	27	3.9-4.0
30	6	3.9-4.0	155	27	3.9-4.0
32	6	3.9-4.0	160	27	3.9-4.0
32.5	6	3.9-4.0	165	27	3.9-4.0
33	6	3.9-4.0	170	30	3.9-4.0
34	6	3.9-4.0	175	30	3.9-4.0
35	9	3.9-4.0	180	33	3.9-4.0
38	9	3.9-4.0	185	33	3.9-4.0
40	9	3.9-4.0	190	33	3.9-4.0
42	9	3.9-4.0	195	33	3.9-4.0
45	9	3.9-4.0	200	33	3.9-4.0
